Grimme VARITRON 470

Grimme VARITRON 470 Ask for price

Dealer number 300223500

Pris Pris på tillämpning

Fabrikat Grimme

Modell VARITRON 470

Årsmodell 2021

Timmar 1515

Ytterligare information

Typ: Begagnad maskin

Fabrikat: Grimme

Modell: VARITRON 470

Årsmodell: 2021

Timmar: 1515

Effekt: 340 KW (462 Hk)

Hastighet km/h: 20

Vikt (t): 24.5

Transportbredd (meter): 350000

Tillåten totalvikt (t): 26

Kubikinnehåll: 10677

Detaljer

VARITRON 470
(0010) Grimme self-propelled potato harvester.
(0020) VARITRON 470 WHEEL
(0030) Front power lift for haulm topper
(0040) Preparation for haulm spreader
(0050) Row width 75 cm
(0060) Pick-up width: 580 mm
(0070) Ridge drums: Ø 390 mm flat
(0080) 2 blade coulter
(0090) Lifting for tramline harvesting
(0100) TerraControl
(0110) Hydraulically driven coulter disks (8
(0120) pcs.)
(0130) Pick-up conveyor 3000 mm
(0140) Picking-up web pitch 40 mm
(0150) Pitch-dependent PU forced drive of the
(0160) Pick-up belt
(0170) 1st sieve belt pitch 40 mm
(0180) Pitch-dependent PU forced drive 1.
(0190) Sieve belt
(0200) Vibratory knocker in the 1st sieve belt with
(0210) Speed adjustment
(0220) from the terminal
(0230) Plucking roller against 1st sieve belt
(0240) Guide 1st plucking unit / plucking roller:
(0250) Brush
(0260) 2nd sieve belt pitch 35 mm
(0270) Pitch-independent friction drive 2.
(0280) Sieve belt
(0290) Pick-up belt, 1st and 2nd sieve belt
(0300) reversible
(0310) Rotor beater with speed adjustment in the
(0320) 2nd screen belt hydraulic
(0330) driven in series with vibrating beater
(0340) in the 1st sieve belt
(0350) Transfer belt to the fine haulm elevator
(0360) Pitch: 35 mm vulcanized
(0370) Speedtronic-Web: Automatic speed adjustment
(0380) Speed adjustment
(0390) of the INNOVATION sieve belts
(0400) Segment roller with black segments
(0410) Guide 2nd plucking unit / plucking roller:
(0420) Brush
(0430) Segment rollers 1. MultiSep Ø 162 mm, 4
(0440) Lips
(0450) Clod rollers 1st MultiSep rubber
(0460) Fine haulm elevator bottom hydraulic
(0470) driven
(0480) Belt fine haulm elevator bottom pitch 40
(0490) mm
(0500) Scraper roller on the fine haulm elevator
(0510) reversible from the terminal
(0520) OptiBag, PU perforated bag conveyor
(0530) Speedtronic elevator: Automatic speed adjustment
(0540) Speed adjustment of the
(0550) Elevator
(0560) Non-stop hopper with return conveyor
(0570) Hopper floor
(0580) Lubrication system for hopper chain
(0590) Automatic hopper filling system
(0600) Automatic axle center detection and
(0610) Automatic tilt system
(0620) Autopilot
(0630) Tires 270/95 R54 front axle with
(0640) Track width 3.0 m
(0650) Rear left tires 900/60 R32,
(0660) Rear right tires 1050/50 R32
(0670) Hydrostatic single wheel drive
(0680) Mercedes-Benz (MTU) OM 470 LA engine
(0690) Stage V with SCR exhaust technology
(0700) (AdBlue). Diesel fuels according to
(0710) EN 590

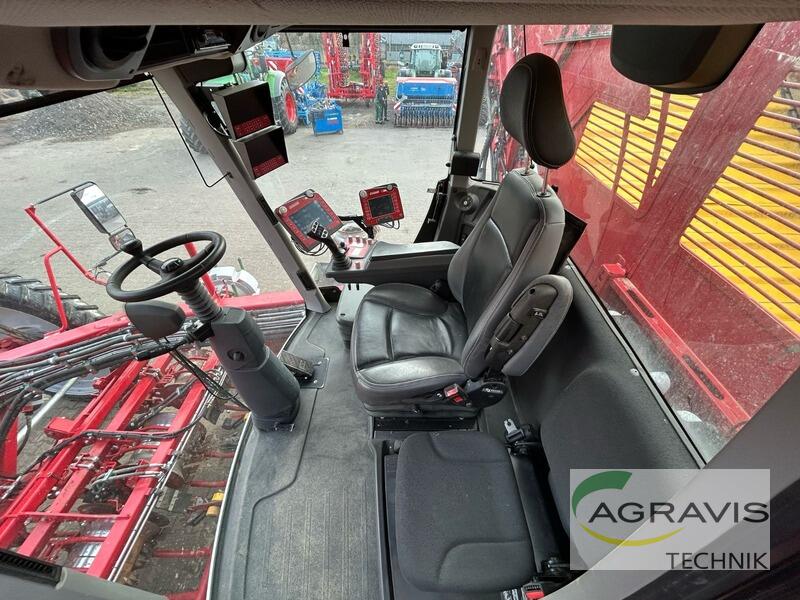

(0720) Premium comfort cab with additional sound insulation
(0730) Sound insulation,
(0740) Leather seat with active ventilation and
(0750) Seat heating and a cooling compartment
(0760) Video package 2
(0770) Visual Protect: CAN bus controlled
(0780) Monitoring system
(0790) ErgoDrive operating concept with freely
(0800) configurable
(0810) Direct access functions on the
(0820) multifunction lever and in the
(0830) control panel in the ergonomic armrest
(0840) as well as a CCI 100
(0850) and a CCI 50 touchscreen terminal
(0860) Clean Control (central adjustment function
(0870) for separators)
(0880) Automatic lubrication system
(0890) Connection to myGRIMME
(0900) 6 LED headlights in the cab roof
(0910) Additional lighting: 6 additional
(0920) Headlights
(0930) HT 400
(0940) Row width 75
(0950) Haulm topper connection VARITRON
(0960) removable
(0970) Automatic haulm topper depth control
(0980) integrated haulm spreader with
(0990) Discharge width control from the cab
(1000) Post-harvest check
(1010) Machine inspection
(1020) Ready for use
Automatic translation from German without guarantee.
Show original description
